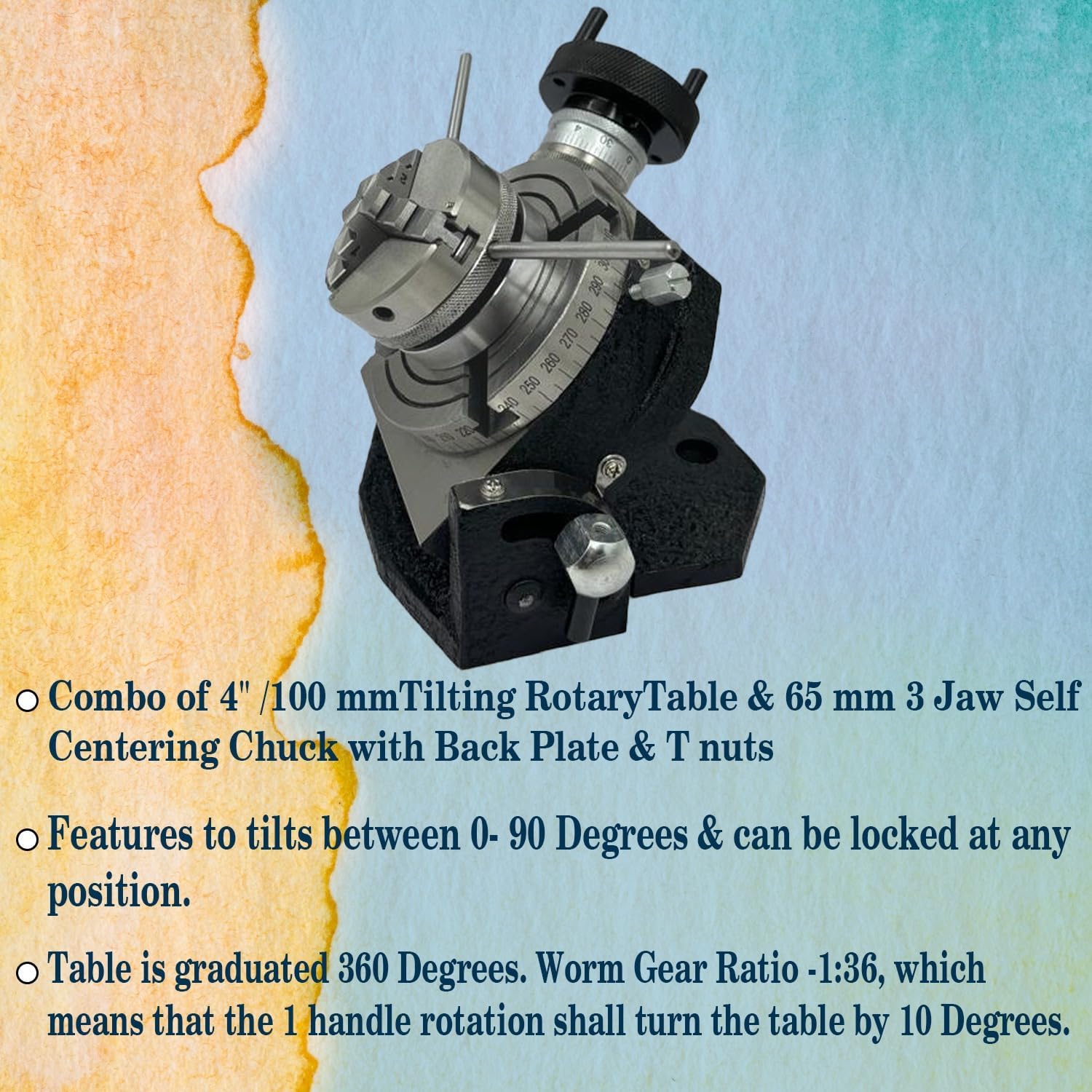

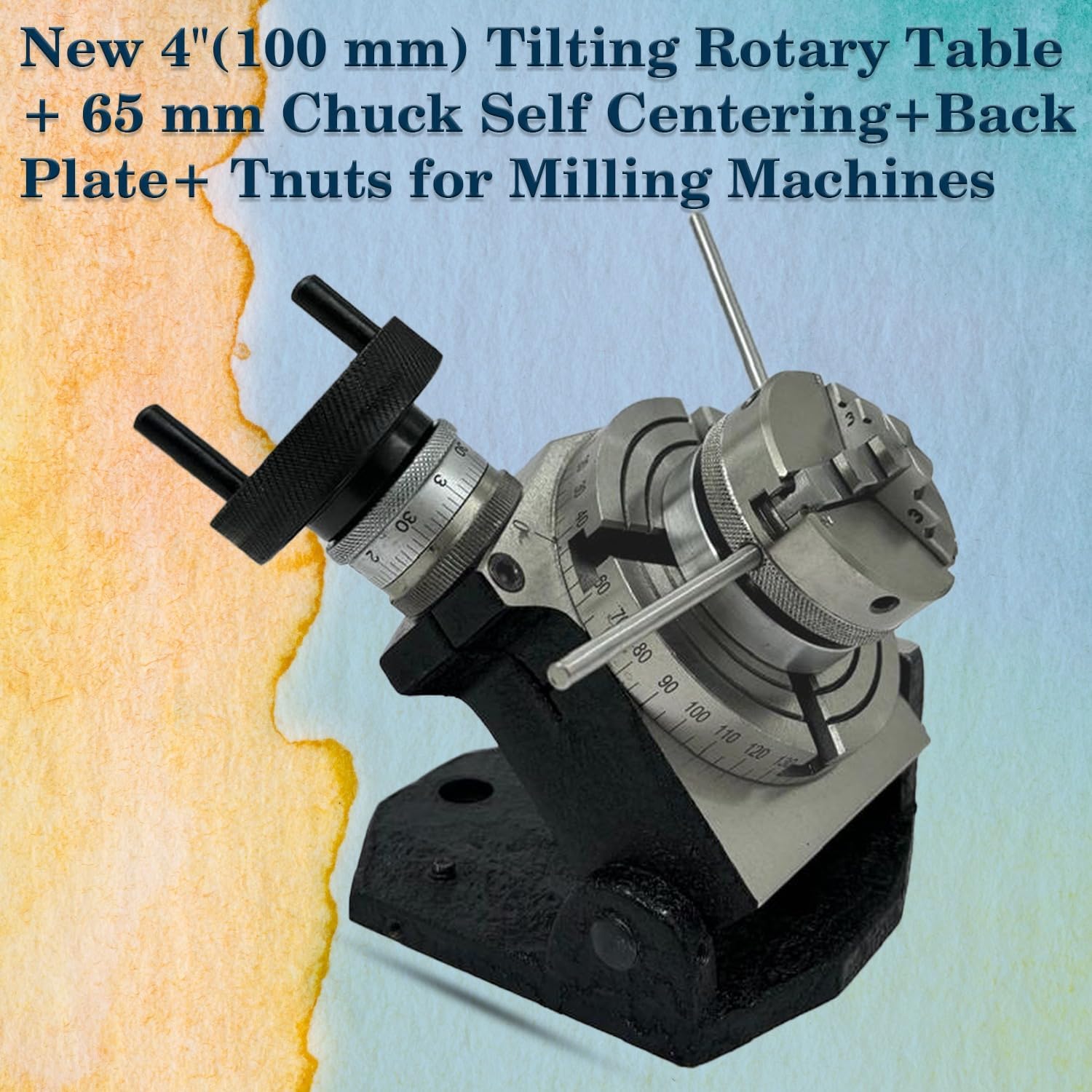

New 4"(100 mm) Tilting Rotary Table + 65 mm Chuck Self Centering+Back Plate+ Tnuts for Milling Machines
Product details
| Management number | 230029962 | Release Date | 2026/05/31 | List Price | US$12.00 | Model Number | 230029962 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: Features to tilts between 0- 90 Degrees & can be locked at any position. Table diameter 100 mm Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 3 1/8" (79 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position Siupplied with a 65 mm 3 jaw Self centering Chuck with a Plate & Fixing tnuts bolts. Back plate is drilled in a manner that i can fit both to a 3 as well as 4 slot Rotary talbe
- Combo of 4" /100 mmTilting Rotary Table & 65 mm 3 Jaw Self Centering Chuck with Back Plate & T nuts
- Features to tilts between 0- 90 Degrees & can be locked at any position.
- Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
| ASIN | B01N24SIZ0 |
|---|---|
| Size | Medium |
| Color | Wrinkle Black Paint Finish & Ground Finish |
| Usage | Machine Shops, Engineering Colleges, Milling Machine, Garages, |
| Material | Caste Iron & Steel |
| Item Weight | 17.38 pounds |
| Part Number | MRT-4T65CS |
| Manufacturer | Global Tools |
| Power Source | Manual |
| Cutting Diameter | 100 Millimeters |
| Number Of Pieces | 1 |
| Assembled Diameter | 100 Millimeters |
| Batteries Included | No |
| Batteries Required | No |
| Included Components | Tnuts, 65 mm 3 jaw Self centering Chuck with a Plate |
| Item Package Quantity | 3 |
| Is Discontinued By Manufacturer | No |
